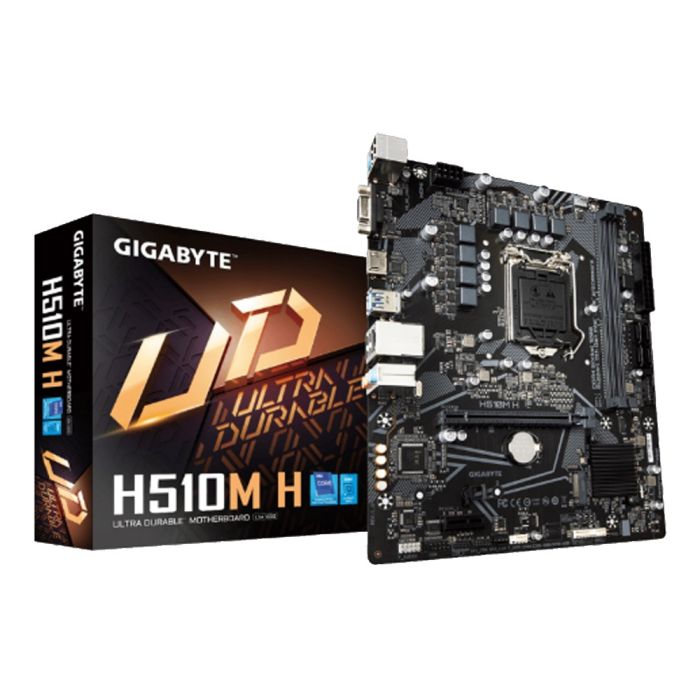

Mother GIGABYTE H510M H V2 1200 DDR4

MOTHER GIGABYTE H510M H V2 1200 DDR4 (10MA|11VA GEN) (4942)

Supports 11th and 10th Gen Intel Core Series Processors

Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface

GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management

High Quality Audio Capacitors and Audio Noise

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

GIGABYTE APP Center, Simple and Easy Use

Anti-Sulfur Resistors Design


Procesador. LGA1200 package:
11th Generation Intel Core i9 processors | Intel Core i7 processors | Intel Core i5 processors
10th Generation Intel Core i9 processors | Intel Core i7 processors | Intel Core i5 processors | Intel Core i3 processors| Intel Pentium processors | Intel Celeron processors*
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
L3 cache varies with CPU. (Please refer to "CPU Support List" for more information.)
Chipset
Intel H510 Express Chipset
Memoria
11th Generation Intel Core i9|i7|i5 processors:
Support for DDR4 3200|3000|2933|2666|2400|2133 MHz memory modules
10th Generation Intel Core i9|i7 processors:
Support for DDR4 2933|2666|2400|2133 MHz memory modules
10th Generation Intel Core i5|i3|Pentium|Celeron processors:
Support for DDR4 2666|2400|2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8|2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8|2Rx8|1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Gráficos Integrados
Integrated Graphics Processor-Intel HD Graphics support:

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC
High Definition Audio
2|4|5.1|7.1-channel
